Pentium 4 motherboard Intel i845D chipset PGA478 socket
Manufacturer: Fujitsu

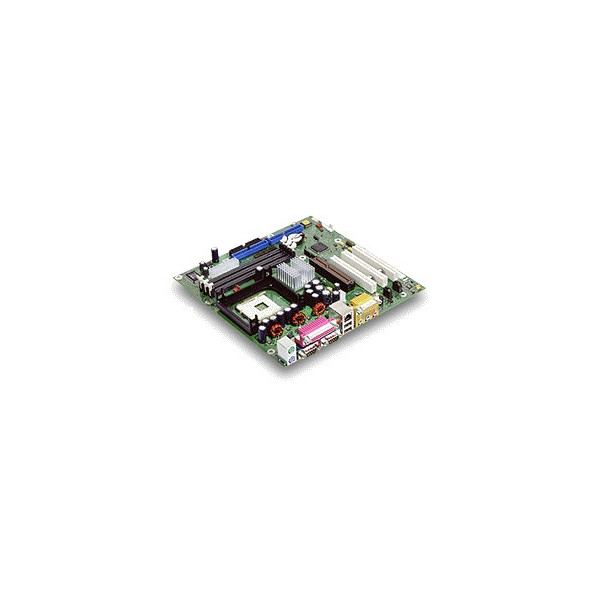

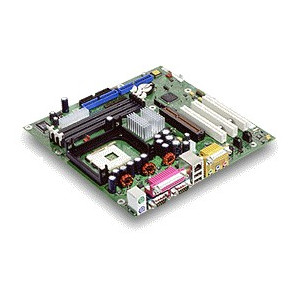

A fujitsu manufactured mainboard with Intel i845D chipset. 3 pci slots, 1 AGP slot and 2 DIMM slots supporting upto 2 GB of DDR memory. PGA478 socket for Intel Pentium 4 or Celeron processors. Integrated ethernet and audio chipset.
Data sheet
| Condition | Used |
More info
Detailed specification
| Manufacturer | Fujitsu Seimens |
| Model Name | D1331 |
| Chipset | Intel i845D |
| CPU supported | PGA478 socket Intel Pentium 4 and Celeron processors |
| Memory | 2 x DDR Dimm slots supporting a maximum of 2 GB |
| Hard disk Connections | 2 x PATA IDE connectors ATA33/66/100. Supporting a maximum of 4 devices |
| PCI slots | 3 |
| AGP slots | 1 |
| Integrated graphics chipset | None |
| Integrated Audio chipset | Analog devices AD1185 AC97 |
| Additonal features | 3.5 inch floppy drive connector |
| On board Network card | Intel 82562ET 10/100 ethernet |
| USB ports | 4 x USB (2 external and 2 internal) |

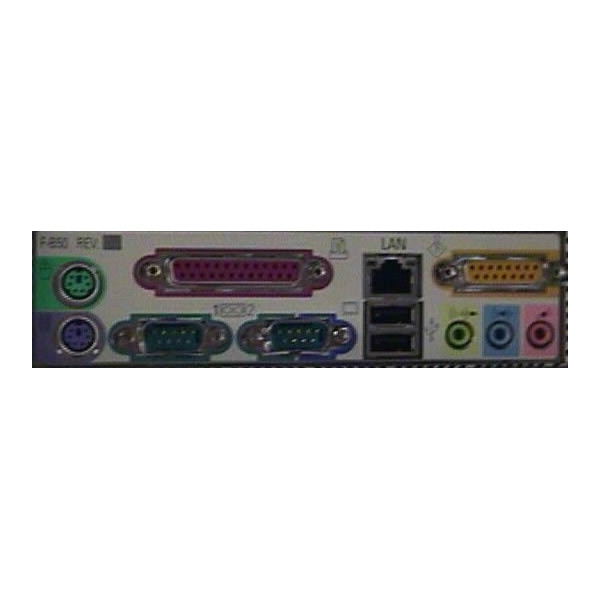

| Other ports | Headphone out, Microphone in, Ethernet port, parallel port, 2 x PS/2 port, 2 x Serial com port, Game port |
| More information | Motherboard manual |
| Dimensions | 245 mm x 245 mm |
| Warranty | Yes |
| Accesories | Comes with rear panel and mounting screws |
