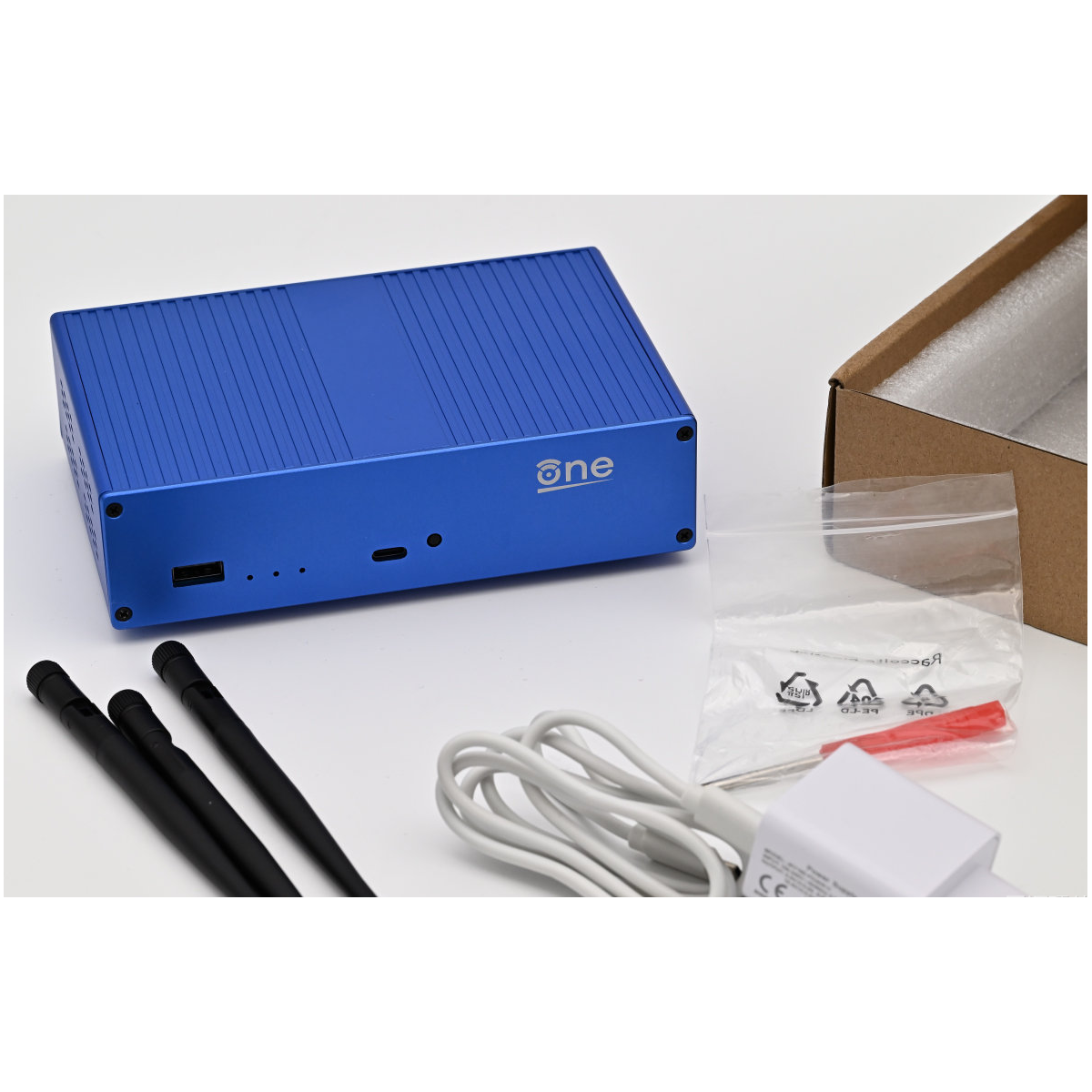

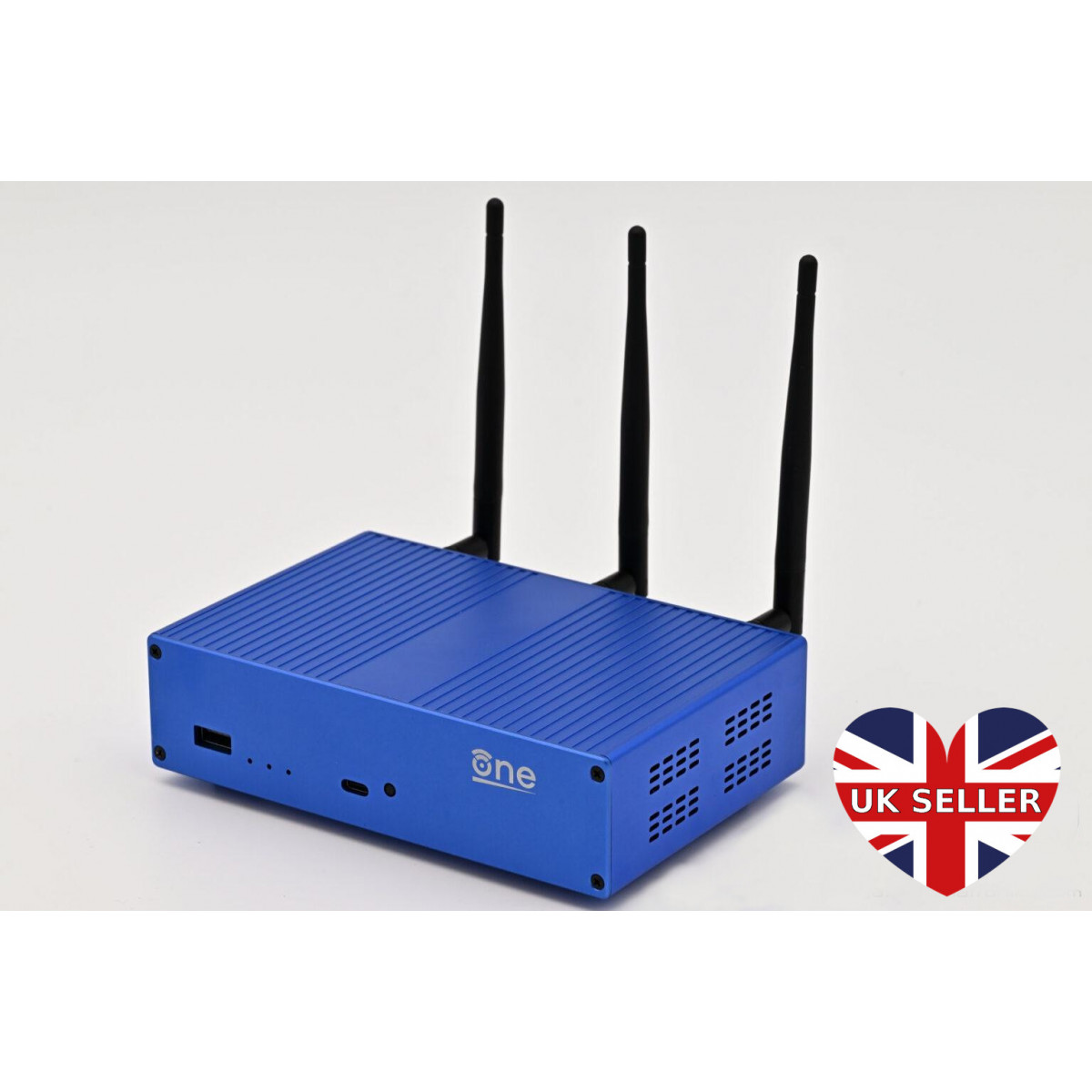

OpenWRT One by Banana Pi WiFi 6 Router

OpenWRT One by Banana Pi is a powerful WiFi 6 router built for speed, security, and reliability. Featuring dual-band WiFi 6, a MediaTek Filogic 820 SoC, 1GB DDR4 RAM, NVMe expansion, PoE, and rugged metal housing, it delivers seamless streaming, gaming, and multitasking—ideal for both home and office.

This product is no longer in stock

£114.99

Out of Stock

Data sheet

Condition Brand New

More info

Hardware Specifications
  • SoC MediaTek MT7981B (Filogic 820) dual-core Cortex-A53 processor @ 1.3 GHz
  • System Memory 1GB DDR4
  • Storage 256 MB SPI NAND flash for U-boot and Linux
  • 16 MB SPI NOR flash for write-protected (by default) recovery bootloader (reflashing can be enabled with a jumper)
  • Two types of flash devices are used to make the board almost unbrickable
  • M.2 2242/2230 socket for NVMe SSD (PCIe gen 2 x1)

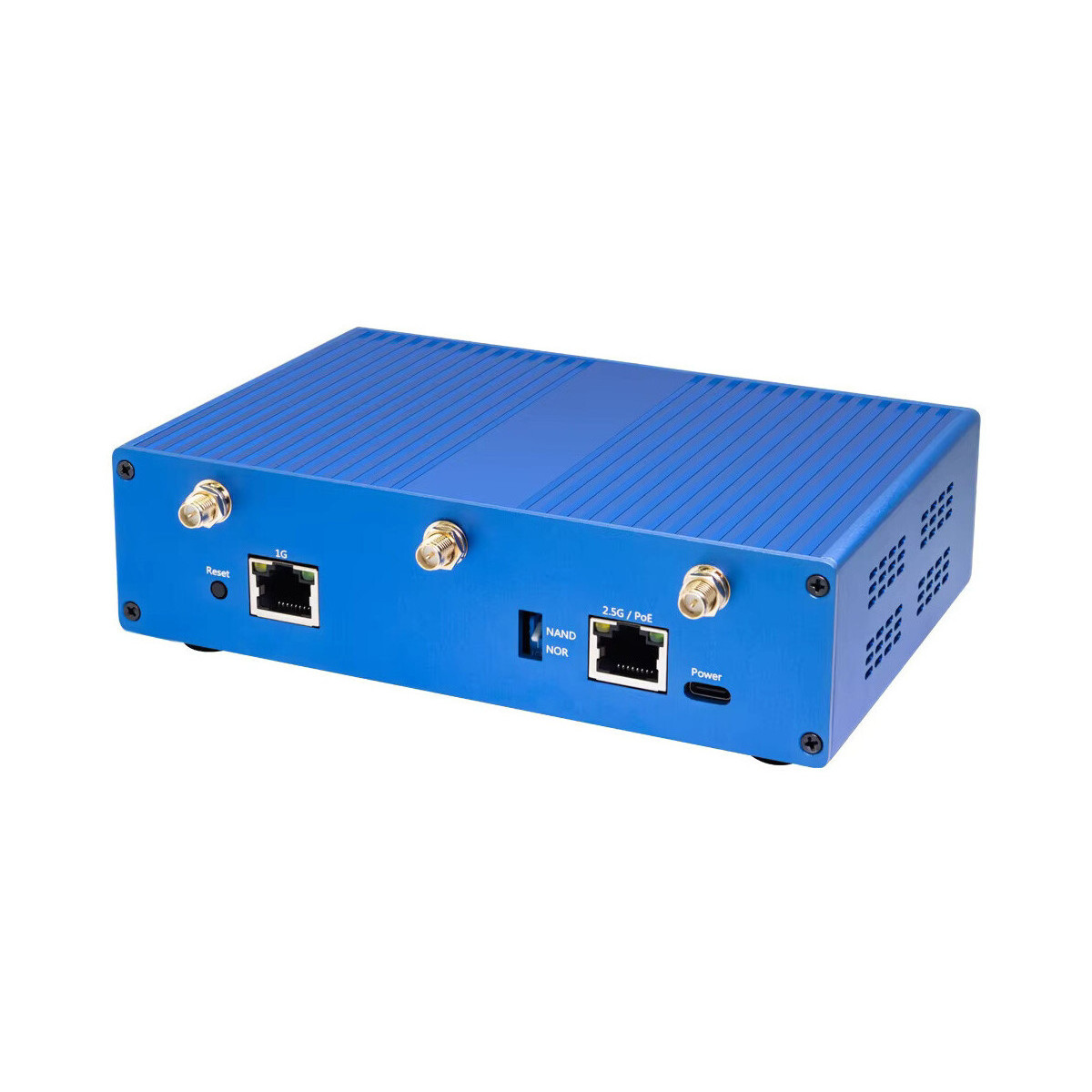

  • Networking 1 x 2.5GbE RJ45 port
  • 1 x Gigabit Ethernet RJ45 port
  • Dual-band WiFI 6 via MediaTek MT7976C (2×2 2.4 GHz + 3×3/2×2 + zero-wait DFS 5Ghz)
  • 3x MMCX antenna connectors
  • USB 1x USB 2.0 Type-A host port
  • USB Type-C (device, console) port using Holtek HT42B534-2 UART to USB chip
  • Expansion MikroBUS socket for expansion modules
  • Debugging Console via USB-C port or 3-pin header, 10-pin JTAG/SWD header for main SoC
  • RTC support RTC onboard
  • Misc Reset and User buttons
  • Boot select switch: NAND (regular) or NOR (recovery) 2x PWM LEDs, 2x Ethernet LED (GPIO driven)
  • EM6324 External hardware watchdog
  • NXP PCF8563TS (I2C) RTC with battery backup holder for CR1220 coin-cell
  • Power Supply 15V USB-PD on USB-C port with UK power adapter
  • Optional 802.3at/af PoE via RT5040 module
  • Dimensions 148 x 100.5 mm x 40mm
  • Certifications FCC/EC/RoHS compliance
